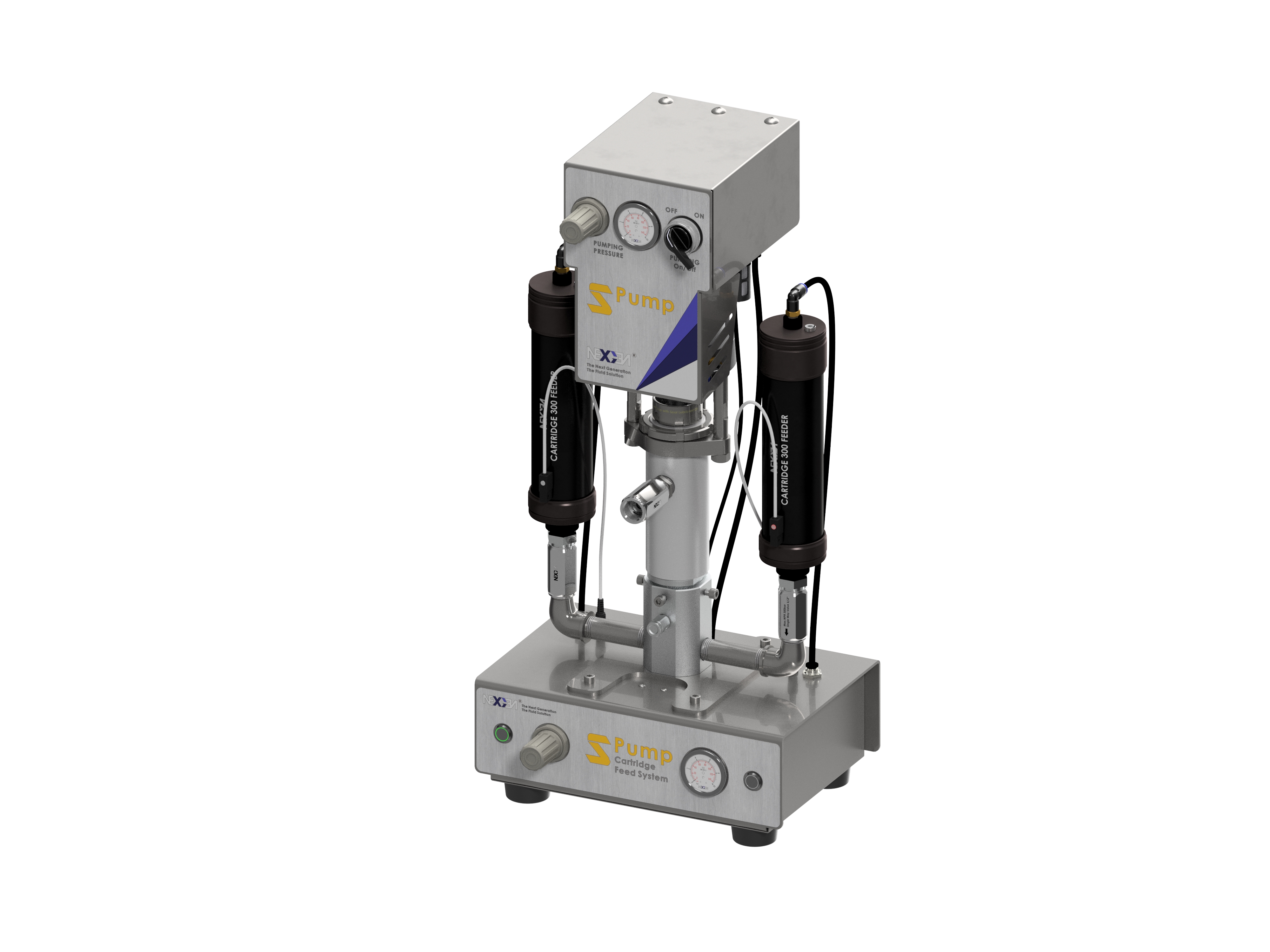

S Pump - Gen 2 Cartridge Feeding Double - Autochanging

The Durable Stainless Steel Pump

■  High Viscosity Material Feeding
The S pump is designed to supply high viscosity materials
for the cartridge packages.
High density/ viscosity/chemical almost materials accepted.

■  Max. Life Cycle Time with Ceramic Piston Rod
The S pump internal design by the special piston rod
structure is focusing to make better durability,and its
much longer life cycle time with the strong wear resistance.
It's ideal for high density thermal conductive 1K/2K applications.

■  Made of Stainless Steel
Great chemical resistance. It accepts the using with high
chemical component glues like acrylic/ acrylate glues.

■  Convenient/ Easy/ Safety
- Easy level monitoring.
- Free style control(pumping/step booster).
- Safety automatic air pressure relief.
- Safety automatic pumping off when level empty.
- Low current control system.
- Quick cartridge replacing.

■  Simple
The S pump is designed as much smaller size pump with
more simple user interface and maintenance.
But the supply ability as pressure feed unit is very powerful.
It will be ideal as desktop feed system.



Technical Data
S Pump Cartridge Feeding

Specification
S Pump - Cartridge Feeding Double - Autochanging
Code411000D
Accepted max. viscosity(cps)1,000,000
Accepted max. density(g/cc)3.5
Air inlet pressure(MPa)0.3~0.7
Max. fluid outlet pressure(MPa)8.4
Flow rate(cc/cycle)10
Fluid outlet port size1/2"
Weight(kgs)21
Size(mm)320x250x655
Wetted partsCeramic, Stainless steel, PTFE, UHMWPE, FKM
Power Supply24VDC/ 0.5A
